Test Automation with iTest

Testing applications vary greatly, from simple component testing to complex systems such as e-motor hybrid test stands that include simulation and calibration.  The test automation requirements for these systems also vary. In most cases these systems need to integrate and acquire data from a variety of measurement devices from different vendors, all while following a defined test schedule.

With more than 1000 installations world-wide, iTest has a proven record of robustness and reliability. The full-featured, open architecture system is readily expandable.  Our iTest family of test automation products provide a full range of capabilities, allowing you to purchase just the right solution for your application without having to overbuy.

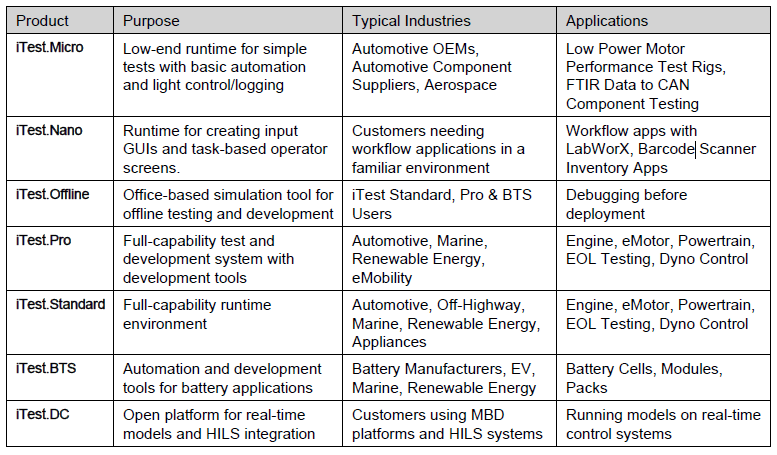

The iTest family, which includes iTest.Pro, iTest.Standard and iTest.Micro, provides a range of functionality and configurability to fit any application. Because they are all based on the iTest platform, it is an easy transition to go from one to the other, with minimal learning curve, as requirements evolve. Third-party device manufacturers have successfully used iTest to develop controllers, and many automotive OEMs have implemented the system as the basis for their test automation.

  • Acqusition Rates – Up to 20kHz
  • Logged Channels – 300,000*
  • PID Loops – 30 PID Groups | 8 @ 1kHz

Standard options designed for

ANY

Testing Application

Feature

iTest.Pro

iTest.LA

iTest.Micro

Intended System Type Customized measurement and control applications Standard engine application; runtime only Small component stand (alternator, start/stop, pump, etc.)
Control Rates 1kHz 1kHz 1kHz (2 Parameters)
Acquisition Rates Up to 20kHz Up to 20kHz 1kHz (10 Channels) 100Hz (400 Channels)
        20KHz HW/Bus limited HW/Bus limited No
        1kHz Up to 512 Channels Up to 512 Channels Up to 10 Channels
        100Hz **Yes **Yes Up to 400 Channels
        1Hz **Yes **Yes **Yes
Logged Channels (max) 300,000* 300,000* 410
User Defined Channels (max) 12,000 12,000 2,000
Active User Definable Calculations (max) 2,000 2,000 50
PID Loops 30 PID groups
8 @ 1kHz
30 PID groups
8 @ 1kHz
2
Dyno control Yes Yes None
Notes Complete package Configurable, limited customization; No TestManager Requires LabCentral; assumes the same application across multiple cells

*Hardware-limited

**At maximum #Channels

Highlighted Features

iTest Professional

Full-featured, expandable test automation and control platform for engine and powertrain test bed applications.

iTest Lab Automation

Runtime-only package for standard engine applications and includes the AutomationPanel operating interface and FlexEdit workflow editing tool.

iTest Micro

Platform supports pre-configured “out-of-the-box” solutions that are targeted for test systems running simple, repetitive sequences (e.g. on/off), usually found in component or end-of-line quality testing.

iTest Speed

Solutions that are targeted for racing and aeronautics test systems. iTest Speed offers unique pre-configured options that are important for testing these systems.
